JIS F 7209 Longthógáil - Strainers Ola Simplex Caighdeán Dearaidh: JIS F7209-1996 Caighdeán Tástála: JIS F7200-1996 Brú Tástála: Comhlacht-0.74MpaFlange méid de réir JIS B2220-5K nó 10K * Tá trí chineál ag JIS F7209, cineál S & cineál, cineál S. Is féidir méid .DN a bheith ó DN15 go DN400

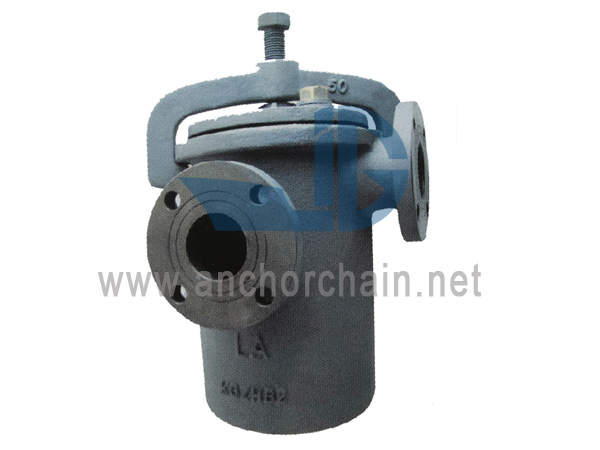

Strainer Ola Marine Simplex JIS F7209
Catagóir:JIS Strainer & Scagaire Mara
Ábhar: Iarann Teilgthe
Caighdeáin: JIS F7209
Teastas: TEASTAS MILLE
Praghas Fob: Faigh an Praghas is déanaí Anois
Áit Tionscnaimh: An tSín
| DN | d | L | L (LA/LB) | D | C | Líon Poll Bolt | h | t | H |
| 5K20 | 25 | 190 | 85 | 65 | 4 | 12 | 14 | 240 | |
| 5K25 | 25 | 190 | 95 | 95 | 75 | 4 | 12 | 14 | 240 |
| 10K25 | 25 | 190 | 95 | 125 | 90 | 4 | 19 | 16 | 240 |
| 5K32 | 32 | 260 | 130 | 115 | 90 | 4 | 15 | 18 | 328 |
| 10K32 | 32 | 260 | 130 | 135 | 100 | 4 | 19 | 20 | 328 |
| 5K40 | 40 | 260 | 130 | 120 | 95 | 4 | 15 | 16 | 328 |
| 10K40 | 40 | 260 | 130 | 140 | 105 | 4 | 19 | 20 | 328 |
| 5K50 | 50 | 280 | 140 | 130 | 105 | 4 | 15 | 16 | 405 |
| 10K50 | 50 | 280 | 140 | 155 | 120 | 4 | 19 | 20 | 405 |
| 5K65 | 65 | 340 | 170 | 155 | 130 | 4 | 15 | 18 | 495 |
| 10K65 | 65 | 340 | 170 | 175 | 140 | 4 | 19 | 22 | 495 |
| 5K80 | 80 | 370 | 185 | 180 | 145 | 4 | 19 | 18 | 525 |
| 10K80 | 80 | 370 | 185 | 185 | 150 | 8 | 19 | 22 | 525 |
| 5K100 | 100 | 420 | 210 | 200 | 165 | 8 | 19 | 20 | 651 |
| 10K100 | 100 | 420 | 210 | 210 | 175 | 8 | 19 | 24 | 651 |
